| Brand | : | V-Sol |
| Jenis | : | FTTH OLT |
| Kode | : | V1600G1-B |
| Harga | : | Rp 16.500.000,00 |

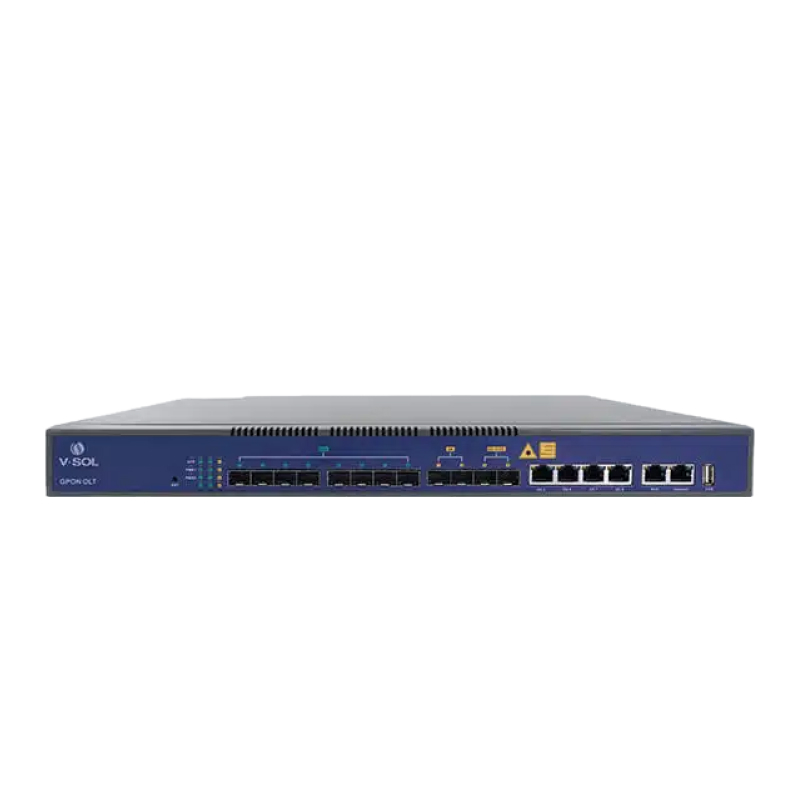

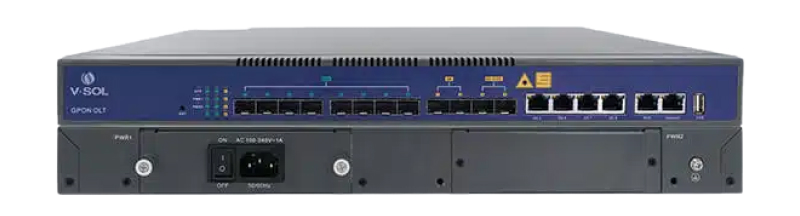

The V1600G1-B vsol is a pizza-box GPON OLT with 8 PON ports that meets flexible and fast FTTx access, suiting the scenarios such as sparse/remote/cost-sensitive area, smart industrial park, commercial building and FTTM, etc.
8*GPON,4GE(RJ45)+2*GE(SFP)+2*10GE(SFP+)
*Sudah termasuk 8x SFP 9dBm
Specification
| Model | V1600G1-B |
| Uplink Port | QTY : 8 |
| RJ45(1G) : 4 | |
| SFP(1G) : 2 | |
| SFP+(10G) : 2 | |
| GPON Port | QTY : 8 |
| Physical Interface : SFP Slots | |
| Supported PON module level : Class B+, C, C+, C++, C+++ | |
| Max splitting ratio : 1:128 | |
| Management Port | 1*10/100/1000 BASE-T out-band port, 1*CONSOLE port, 1*USB2.0 |
| Backplane Bandwidth (Gbps) | 104 |
| Port Forwarding Rate(Mpps) | 68.448 |
| PON Port Specification (Class C+++) | Transmission Distance : 20KM |
| GPON port speed : Upstream 1.244Gbps Downstream 2.488Gbps | |
| Wavelength TX 1490nm RX 1310nm | |
| Connector : SC/UPC | |
| Fiber Type : 9/125μm SMF | |
| Power supply | AC : Working Voltage Range: 100~240V, Rated Voltage: 110V/220V DC : Working Voltage Range: -36~-75V, Rated Voltage: -48V/-60V |
| Management Mode | EMS, WEB, SNMP, Telnet , CLI |
| Working temperature | -20 ~ +60 C |
| Storage temperature | -40 ~ +70 C |
| Relative Humidity | 5 ~ 95% (Non-condensing) |
| Dimension (L*W*H) | 442 x 319 x 43.6 mm |
Seluruh harga yang tercantum di atas belum termasuk PPN 11% dan biaya pengiriman.
Jika Anda membutuhkan faktur pajak untuk transaksi ini, pastikanlah bahwa Anda telah menginformasikan Nama Perusahaan dan NPWP dengan benar kepada kami sebelum melakukan order.
