Teltonika RUT956 LTE Wi-Fi Router

Teltonika RUT956 LTE Wi-Fi Router
klik pada gambar untuk melihat gambar lebih besar

Kategori:Teltonika
Kode:RUT956
Harga:Rp 4.727.000,00

RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.

Download Brosur



Features :

  • 4G/LTE (Cat 4), 3G, 2G
  • Dual Sim with auto failover, backup WAN and other switching scenarios
  • Ethernet, Serial (RS232, RS485) and multiple Inputs/Outputs
  • Global Navigation Satellite System for location services and time synchronization



DUAL SIM (Auto Switch) : 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail.





Specification

Model RUT956

MOBILE
Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN

WIRELESS
Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
WiFi security WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID/ESSID SSID stealth mode and access control based on MAC address
WiFi users Up to 100 simultaneous connections
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes
Wireless Connectivity Features Fast roaming (802.11r), Relayd

ETHERNET
WAN 1 x WAN port  10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN 3 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

NETWORK
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup WiFi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
SSHFS Possibility to mount remote file system via SSH protocol

VPN
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,
BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IPsec IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

SYSTEM
CPU Mediatek, 580 MHz, MIPS 24Kc
RAM 128 MB, DDR2
FLASH storage 16 MB, SPI Flash

POWER
Connector 4-pin industrial DC power socket
Input voltage range 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 30 VDC
Power consumption < 2 W idle, < 7 W Max

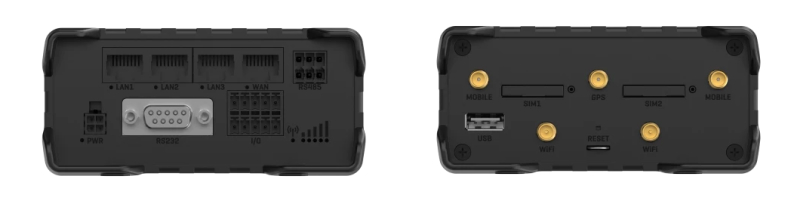

PHYSICAL INTERFACES
Ethernet 4 x RJ45 ports, 10/100 Mbps
I/O’s 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)
Status LEDs 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
Power 1 x 4-pin power connector
Input/Output 1 x 10-pin industrial socket for inputs/outputs
Antennas 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x SMA for GNSS
USB 1 x USB A port for external devices
RS232 1 x DB9 socket
RS485 1 x 6-pin industrial socket
Reset Reboot/User default reset/Factory reset button

PHYSICAL SPECIFICATION
Casing material Aluminium housing, plastic panels
Dimensions (W x H x D) 110 x 50 x 100 mm
Mounting options DIN rail (can be mounted on two sides), flat surface placement
Operating temperature -40 °C to 75 °C
Ingress Protection Rating IP30
Operating humidity 10% to 90% non-condensing


Standard Package Contains :

  • Router RUT956
  • 9 W PSU
  • 2 x LTE antennas (magnetic mount, SMA male, 3 m cable)
  • 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
  • GNSS antenna (adhesive , SMA male, 3 m cable)
  • RS485 connector block
  • I/O connector block
  • Ethernet cable (1.5 m)
  • SIM Adapter kit
  • QSG (Quick Start Guide)
  • Packaging box

Download Datasheet
